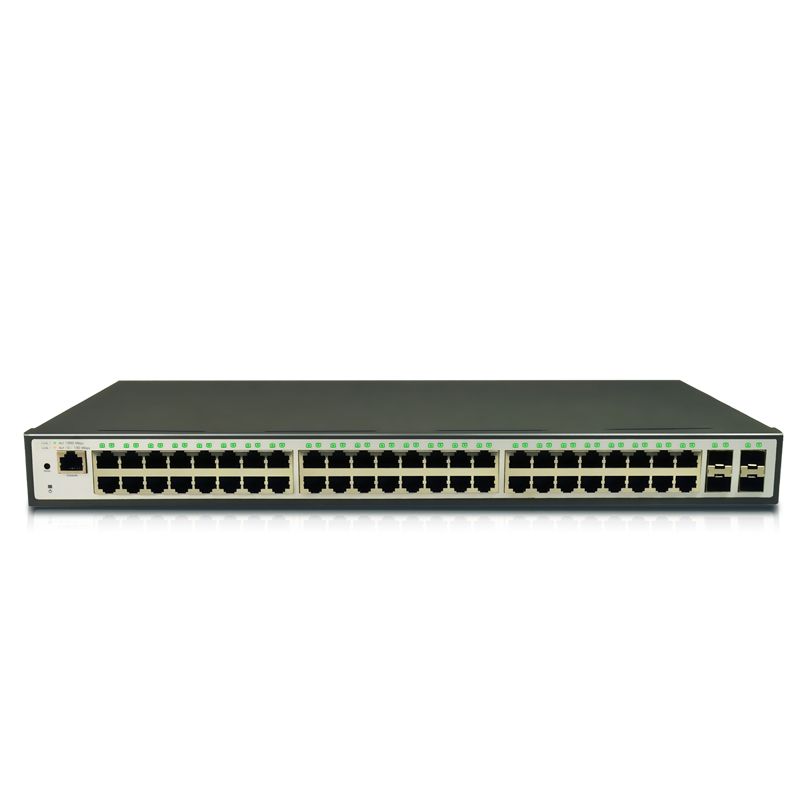

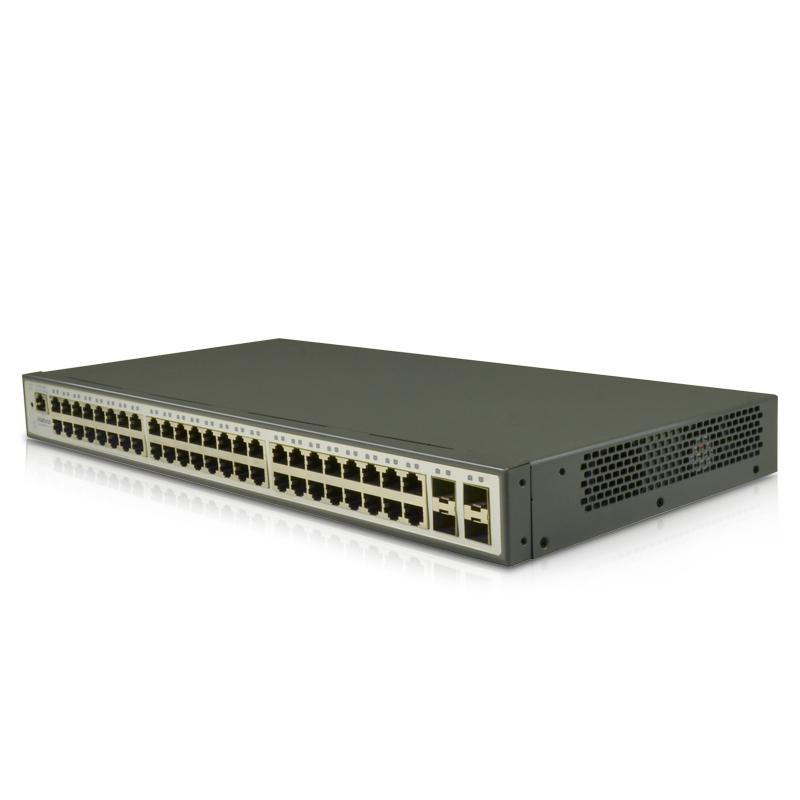

| standard configuration | 48 10/100/1000M RJ-45 MDI/MDI-X ports, 4 10G SFP ports+1 console port |
| Chip program | Marvell 3236 |
| SDRAM | 512MB |
| transmit rate | 130.9Mpps |
| backboard bandwidth | 176Gbps |
| swap mode | Store-and-Forward |
| MAC address table | 16K |
| Dimension | 440*260*44 (mm) |
| power supply | Input AC100-240V Auto,50-60Hz，Output12V/6.6A |
| Lightning protection | Port lightning protection ability: common mode 4 kv |
| Energy conservation design | 3 Fan |
| LED light | status、Link/Act、10G |
| Operating temperature | 0 ~ 50ºC |
| Storage temperature | -40 ~ 70ºC |
| Working humidity | 10% ~ 90% RH |
| Storage humidity | 5% ~ 90% RH |
| Operation altitude | -500m～5000m |
| VLAN |
port base VLAN、MAC base VLAN、protocol base VLAN ACCESS VLAN TRUNK VLAN Super VLAN 802.1Q tagged VLAN Management VLAN can modified to other VLAN Max. 4094 VLAN |
| MAC address administration |
MAC address display/inquire
Supports static MAC
Dynamic MAC address administration
MAC address filtering |
| GMP Snooping |
IGMP Snooping IGMP v1/v2/v3 |
| ACL |
IP standard ACL MAC extended ACL IP extended ACL VLAN -based ACL Based on the 2 layer interface (physical interface/AP) ACL |
| Security feature |
Port isolation in VLAN Port + MAC + IP binding |
| Port Mirroring |
- One-to-one - Many-to-one - One-to-many Mirrored port of sending, receiving and sending, receiving data |
| Port Mirroring |
- One-to-one - Many-to-one - One-to-many Mirrored port of sending, receiving and sending, receiving data |
| storm control | Broadcast/Multicast/Unknown Unicast Storm Control |
| Port speed limit | engress and ingress port speed limits, speed limit exports size 64 Kbps |
| DHCPSNOOPING | Prevent illegal DHCP server, support DHCP trust port |
| Loop detection | Support loop detection |
| STP Protocol |
IEEE802.1d STP IEEE802.1w RSTP standard 802.1s MSTP |
| ARP attack prevention |
Prevent the ARP request deception Prevent the ARP reply cheat |
| Jumbo frames | Max to forwarding 9K bytes Ethernet packets of port |
| QoS |
Hardware queue number: 8 802.1 p, DSCP tag SP WRR SP + WRR Based on the flow speed limit size 64 Kbps Based on the flow speed limit ingress |
| SNMP |
SNMP v2c;conform to RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907 The MIB II;conform to RFC1213 Ethernet MIB;conform to RFC1643 The bridge MIB;conform to RFC1493 |
| RMON | Support group 1, 2, 3, 9 |
| Network management |
Console Telnet The CLI interface WEB UI Support the ping Check the CPU and memory utilization |
